Comer Gearbox
Part no.: 12328249
Further information
- Torque (Nm):
- 540 rpm: n1 = 189, n2 = 99
- Power max. (PS/kW):
- 540 1/min: 15 / 11
- Transmission:
- 1:1,9

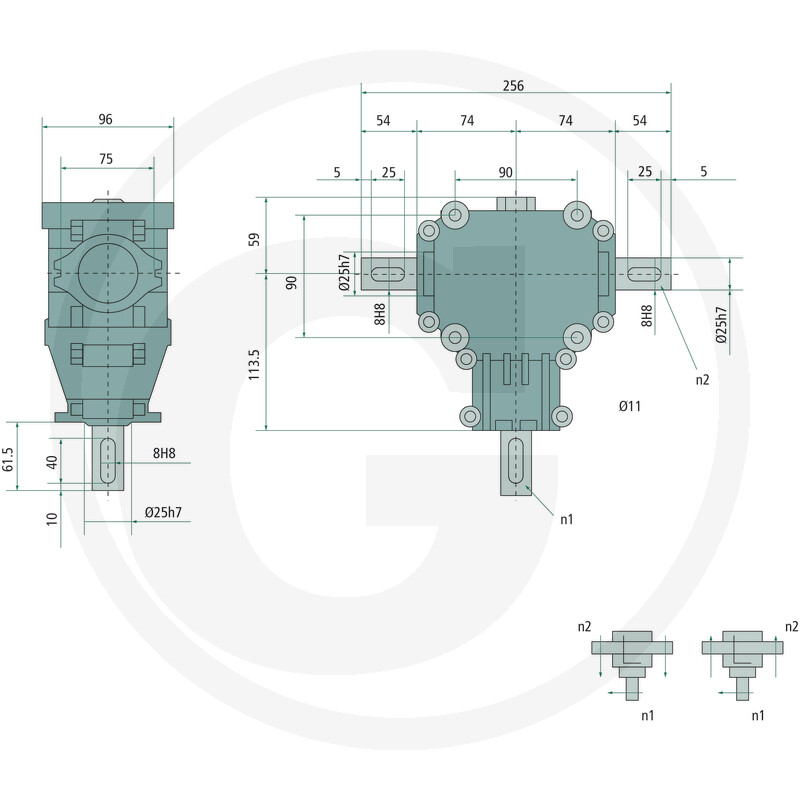

- Hole spacing (mm):
- 90
- Application:
- Sweepers, mulchers, general drives in gardening equipment
- Version:
- Cast aluminium housing
Bevel gear pairing straight-toothed and case-hardened
Speed limit: n = 3000 rpm.
Oil filling quantity: approx. 0.35 litres
Oil type: SAE90 EP
Supplied without oil - n1 (1/min.):
- 540
- n2 (1/min.):
- 1026
- Maintenance:
- 1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year
- To be found in category:
- PTO shafts & drive technologyComer gearsBevel gearboxCast aluminium housingBevel gearbox L-25
