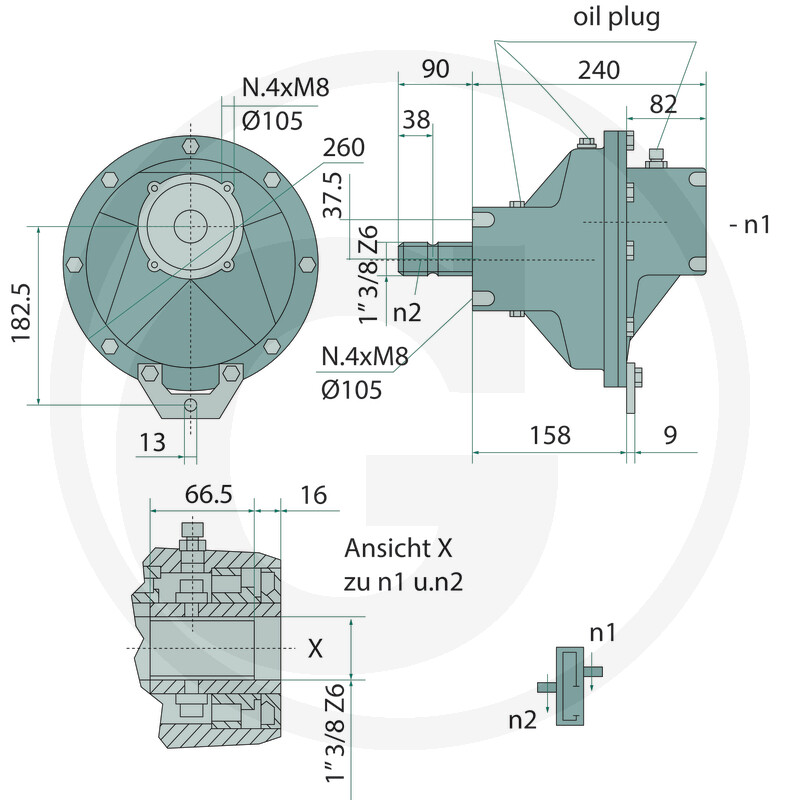

Comer Gearbox
Part no.: 12326568
Further information
- Hole spacing (mm):
- 105
- Torque (Nm):
- n1 = 510, n2 = 960
- Application:
- • Universal gearbox for front and rear operation, circular wood saws, wood splitters
• Hollow shaft mount on both sides 1 3/8" Z6 allows variable installation - based on transmission ratio 1.88:1 or 1:1.88 - Version:
- Cast Iron Housing
Including stub shaft 1 3/8" Z6 n2-sided (remove shaft stub: • 1. Open the oil screw • 2. Loosen the 2 internal hex socket head screws • 3. Pulling out stub shaft)
Gearing case-hardened
Speed limit: 3000 rpm
Oil filling quantity: approx. 1.4 litres
Oil type: SAE90 EP
Supplied without oil
A torque arm should be considered as an anti-twist device - Power max. (PS/kW):
- 1000 1/min: 75 / 55,2
540 1/min: 41 / 30,2 - Transmission:
- 1,88:1
- n1 (1/min.):
- 540
- n2 (1/min.):
- 287
- Maintenance:
- 1st oil change after 50 operating hours, then at intervals of 500-800 hours, or once a year
- Weight:
- 23,80 kg
