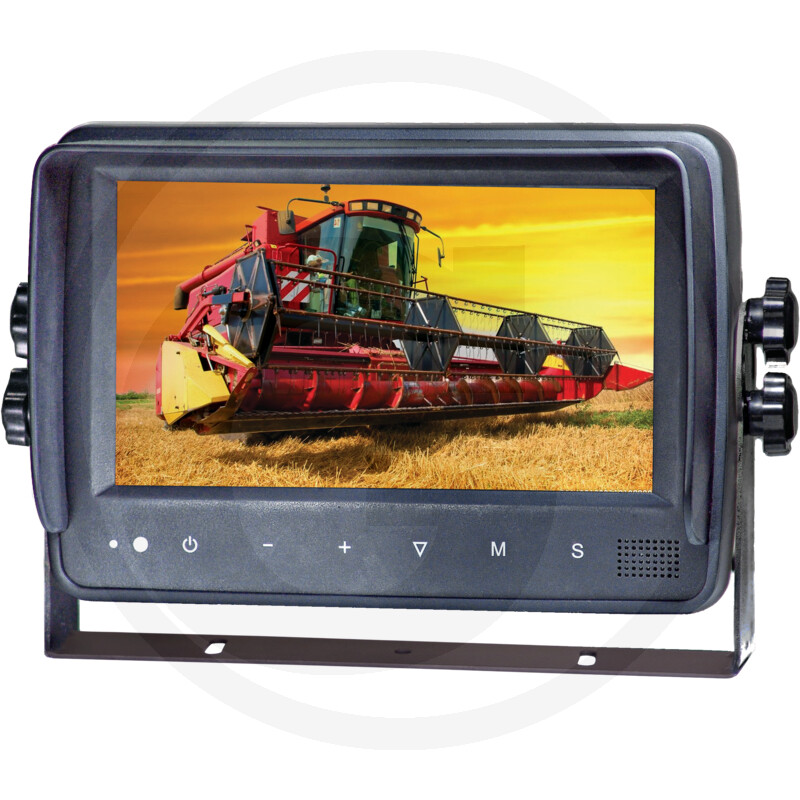

GRANIT 7” HD monitor with cable
Part no.: 12294077
Further information
- Input voltage (V):
- 10 - 32
- Included in delivery:
- 7" monitor
U-shaped bracket
Sun visor
Adjusting screws
Cable
Operating instructions
Infrared remote control - Technical data:
- Resolution: 1024 x 600
Contrast: 700:1
Brightness: 600 cd/m²
Viewing angle: 85° - Protection class:
- IP66K
- Version:
- 7" HD digital TFT LCD colour monitor
- Additional information:
- TFT LCD display with wide viewing angle and high resolution
Supports 3-channel camera input, 3 reverse trigger cables
Supports vertical, mirrored and normal viewing
Several video formats are available for the camera: 1080P 30 / 1080P 25 / 720P 30 / 720P 25 / PAL / NTSC
Backlit touch buttons
Integrated speaker (1W)
Multiple languages available, which can be customised according to user requirements: English, French, Spanish, Russian, Dutch, German, Italian, Japanese
Automatic backlight adjustment
Maximum power consumption 6 W
Vibration resistance 2.13 g - Operating temperature (°C):
- -20 °C bis +70 °C, relative Luftfeuchtigkeit 90 % max
- Camera inputs:
- 3
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 1,74 kg
- EAN codes:
- 4059139490011
- To be found in category:
- ElectricsVideo systemsGRANIT HDHD monitors
