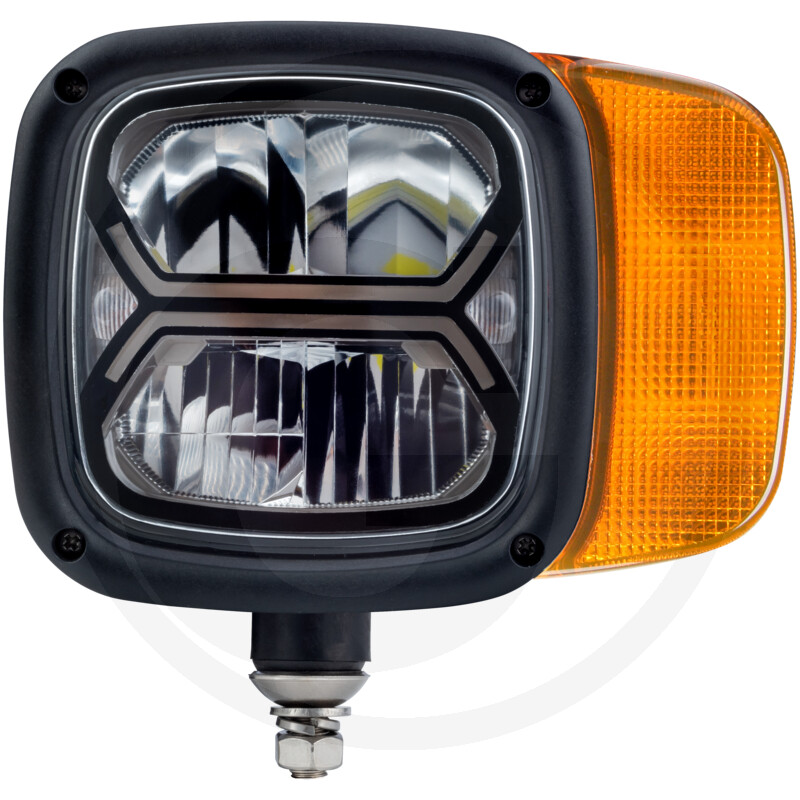

GRANIT LED headlight

Further information

Nominal voltage (V):

12 / 24

Voltage range (V):

10 - 30

Bulb:

LED

Bulbs included:

Yes

Light function:

Full beam, dipped beam, indicator, position light, sidelight

Dimensions W x H x D (mm):

209 x 158 x 119

Connection:

6-pin DT

Notes:

The indicator module can be mounted in any direction

Width (mm):

209

Form:

Rectangular

Height (mm):

158

Depth (mm):

119

Fixing:

Screw fixing

Protection class:

IP6K9K

Equipment:

Heated

Housing material:

Aluminium

Test mark:

R148 / R149 / R10 / CE / UKCA / RoHS

Mounting size (mm):

183

Additional information:

Power consumption:
Far-reaching illumination: 58W
Close-range illumination: 49W
Indicator light/position light: 22W
Parking light: 5W

EMC:

CISPR25 class 3

Light colour (K):

5700 - 6500

Operating temperature (°C):

-40 / +50°C

Manufacturer:

Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]

Weight:

2,15 kg

EAN codes:

4059139480586

To be found in category:

ElectricsLightingMain headlightsLEDRectangular
