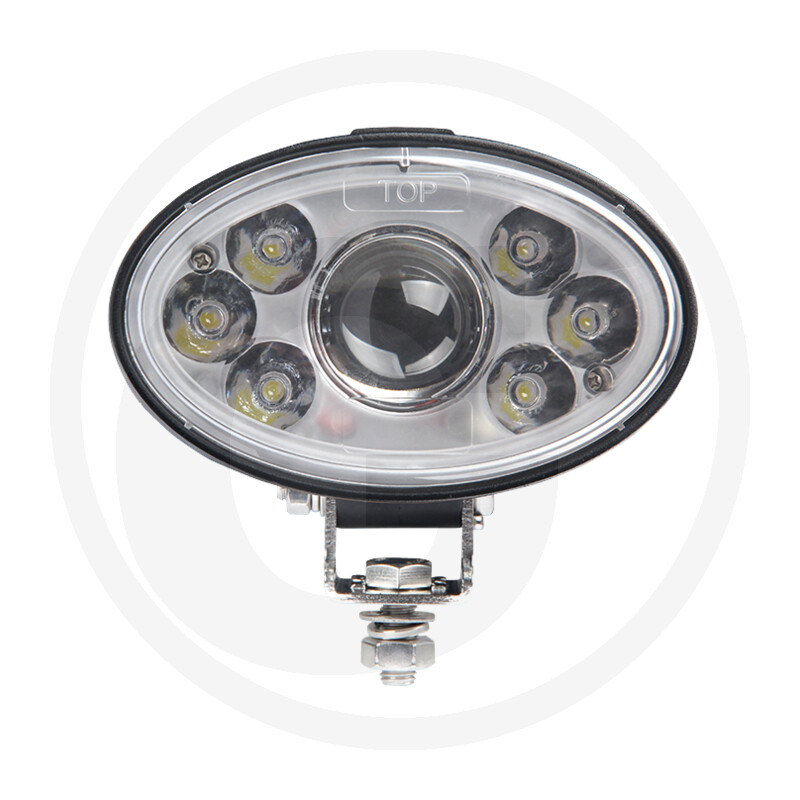

GRANIT LED dipped beam
Part no.: 12268829
Further information
- Nominal voltage (V):
- 12 / 24
- Voltage range (V):
- 10 - 30
- Bulb:
- LED
- Bulbs included:
- Yes
- Light function:
- Dipped beam
- Dimensions W x H x D (mm):
- 143 x 92 x 98
- Connection:
- Open cable end
- Width (mm):
- 143
- Form:
- Oval
- Height (mm):
- 92
- Power (watts):
- 24
- Current (A):
- 1.67A bei 12V
- Depth (mm):
- 98
- Fixing:
- Bracket, stainless steel
- Protection class:
- IP6K9K
- Housing material:
- Aluminium
- Cable length (mm):
- 400
- Test mark:
- R112 / CE / UKCA / RoHS / R10
- Number of pins:
- 2
- Mounting size (mm):
- 166
- Effective luminous flux (lm):
- 750
- Theoretical luminous flux (lm):
- 2900
- EMC:
- CISPR 25 class 3
- Light colour (K):
- 5700 - 6500
- Operating temperature (°C):
- -40 / +50°C
- Housing colour:
- Black
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 972 g
- EAN codes:
- 4059139480555
- To be found in category:
- ElectricsLightingMain headlightsLEDRound
