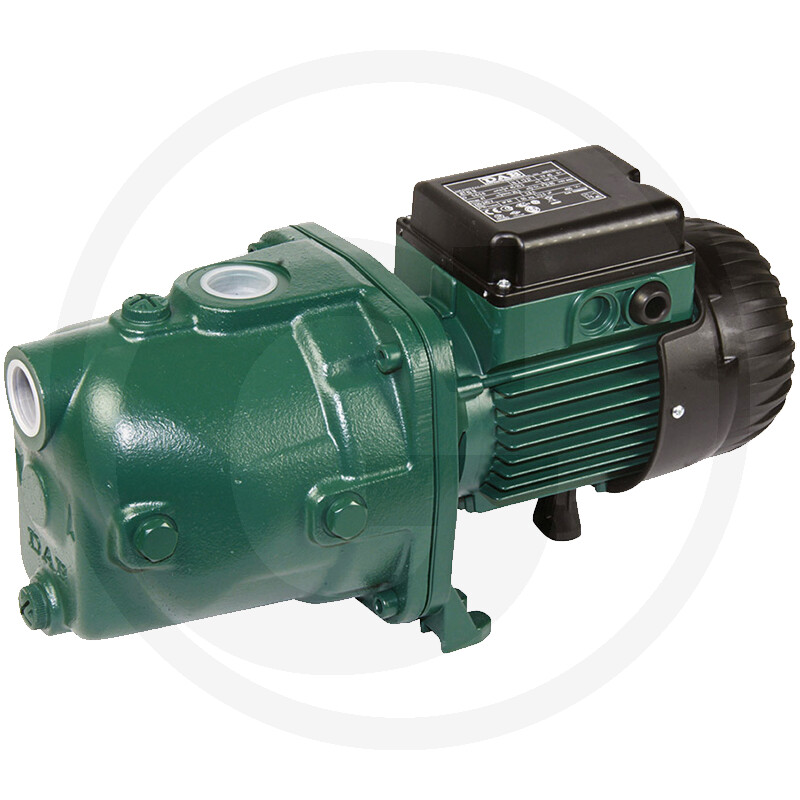

DAB Kreiselpumpe
Jet 132 M
Part no.: 12264439
Further information
- Flow rate max. (l/h):
- 4800
- Delivery height max. (m):
- 48,3
- Max. suction height (m):
- 8
- Pressure max. (bar):
- 6
- Intake temperature max.:
- 35°C
- Connection:
- 1"
- Engine:
- 230V / 50Hz - 1000W
- Version:
- Pumpengehäuse Guss
- Weight:
- 13,41 kg
- To be found in category:
- Irrigation technologyPumpsDAB pumps for household water supplySelf-priming centrifugal pumps
Self-priming, electric centrifugal pump for use in gardens, for growing vegetables, washing and non-professional applications.
Compact and easy to install, self-priming, for pumping water from tanks, wells or watercourses even with air bubbles present.
The liquid to be pumped should be clean, free of solids and abrasive particles, and chemically neutral. It should not be viscous, abrasive or crystallised.
Installation: fixed in horizontal position
Centrifugal pump GardenJet 102M, 132M stainless steel
Motor unit:
• Closed asynchronous motor with external cooling • Motor lantern made of die-cast aluminium
• Rotor mounted on permanently lubricated, oversized ball bearings to ensure quiet running and durability
• Built-in thermal and voltage circuit breaker and permanently activated capacitor
Pump unit:
• Impeller, diffuser and Venturi tube made of technopolymer
• Seal retaining washer and scraper rings made of stainless steel
• Mechanical seal made of carbon / ceramic construction
• With comfortable handle for easy transport
K55 / 200T centrifugal pump
Centrifugal pump with one impeller for pumping water in domestic, civil, industrial and agricultural installations and for use in decanting, mixing and irrigation.
Motor unit:
• Closed asynchronous motor with external cooling
• To protect the three-phase motor, we recommend using a motor protection switch that complies with the applicable regulations
Pump unit:
• Pump housing and motor lantern made of cast iron
• Impeller made of cast iron
• Shaft made of stainless steel
• Mechanical seal made of carbon / ceramic
Compact and easy to install, self-priming, for pumping water from tanks, wells or watercourses even with air bubbles present.
The liquid to be pumped should be clean, free of solids and abrasive particles, and chemically neutral. It should not be viscous, abrasive or crystallised.
Installation: fixed in horizontal position
Centrifugal pump GardenJet 102M, 132M stainless steel
Motor unit:
• Closed asynchronous motor with external cooling
• Rotor mounted on permanently lubricated, oversized ball bearings to ensure quiet running and durability
• Built-in thermal and voltage circuit breaker and permanently activated capacitor
Pump unit:
• Impeller, diffuser and Venturi tube made of technopolymer
• Seal retaining washer and scraper rings made of stainless steel
• Mechanical seal made of carbon / ceramic construction
• With comfortable handle for easy transport
K55 / 200T centrifugal pump
Centrifugal pump with one impeller for pumping water in domestic, civil, industrial and agricultural installations and for use in decanting, mixing and irrigation.
Motor unit:
• Closed asynchronous motor with external cooling
• To protect the three-phase motor, we recommend using a motor protection switch that complies with the applicable regulations
Pump unit:
• Pump housing and motor lantern made of cast iron
• Impeller made of cast iron
• Shaft made of stainless steel
• Mechanical seal made of carbon / ceramic
