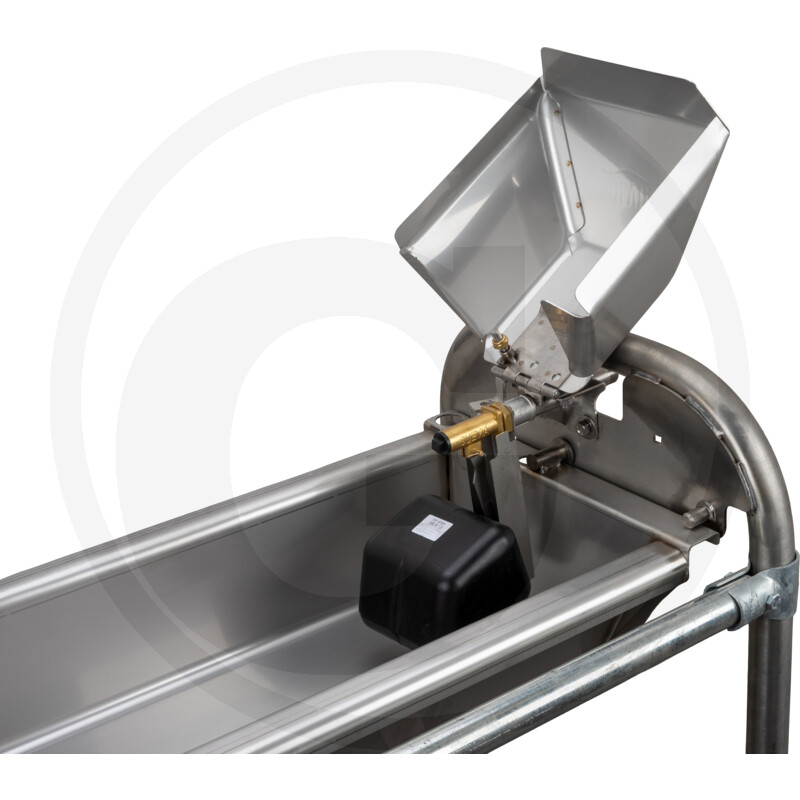

Flat swivel trough 3.0 m

Further information

Version:

• Drinking trough made of stainless steel, with large rounded edges: animal-friendly construction without protruding corners and edges
• Fixed water connection ¾" male thread, no flexible connection line required
• Connection on the right or left possible by moving the valve
• MASTERFLOW float valve, water inlet up to 40 l/min, connection ¾" male thread, front side
• Rounded float cover can be opened without tools
• Water-saving, flat drinking trough, less manure: Water savings per tipping drinker of up to 25,000 l per year (with a cleaning interval of 2 days) compared to a conventional tipping drinker with 200 l water content!
• Freely accessible water surface and optimal drinking height
• Stainless steel brackets for floor mounting. Standard height 87 cm.

Contents (l):

105

Technical data:

• Pressure: max. 5 bar (high pressure)
• Suitable for: dairy cows
• Threaded connection: ¾"
• Heatable: yes (electric)
• suitable for ring pipe: yes
• Bowl material: stainless steel
• Valve type: Float valve
• Valve material: brass

Weight:

188,36 kg
