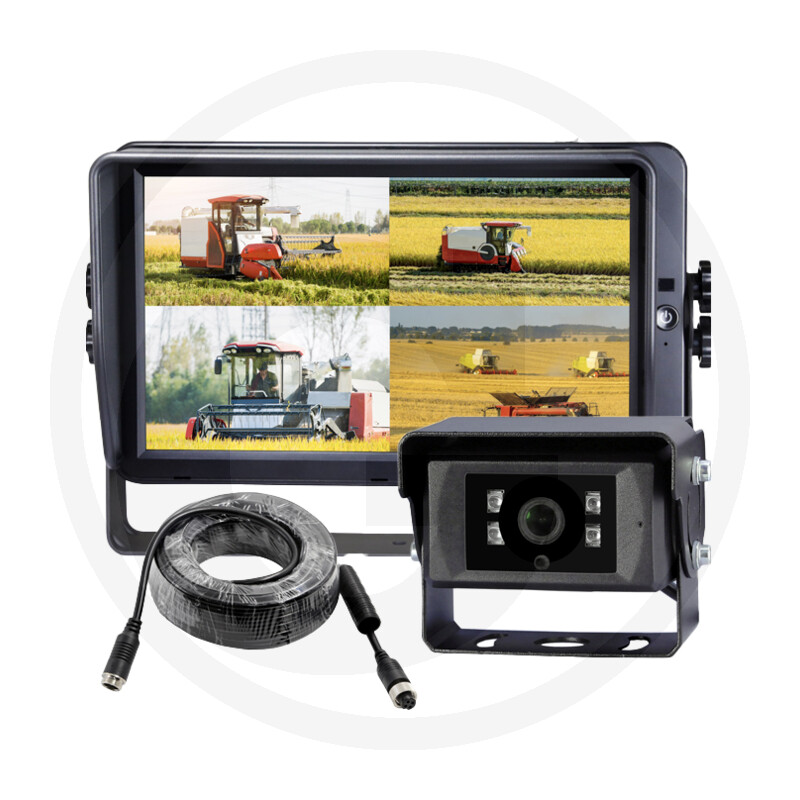

GRANIT 10” HD video system with cable
Part no.: 11674994
Further information
- Description:
- Supports up to 4 HD cameras with 1080P or 720P
Multi-display mode / split screen / Y-split / PiP
The trigger priority can be set freely.
Automatic scan available, scan channel and scan time can be selected.
Supports touchscreen control and can detect left and right swipes to initiate channel change.
The backlight brightness supports 60-stage manual adjustment and 3-stage automatic ambient light adjustment.
Easy to install and operate via IR remote control, with innovative features.
Suitable for numerous applications such as indoor and outdoor security systems, vehicle and ship monitoring - Cable length (m):
- 20
- Included in delivery:
- 10.1" monitor
Camera
20 m cable
U-shaped bracket
Sun visor
Adjusting screws
Screwdriver
Operating instructions
Infrared remote control - Technical data:
- Monitor:
Contrast: 600:1
Resolution: 1024 x 600
Brightness: 600 cd/m²
Viewing angle: 80°
Camera:
Resolution: 1920 x 1080
Automatic day and night detection
Angle: 130°
Vibration-proof up to 5.9G
Frame rate: 25fps / 30fps
Night vision: 15 m - Operating voltage (V):
- 10-32
- Protection class:
- Camera: IP69K
Monitor: IP66 - Version:
- 10" wired HD system with one camera
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- Weight:
- 3,46 kg
- EAN codes:
- 4059139498062
- To be found in category:
- ElectricsVideo systemsGRANIT HDWired HD video systems
