GRANIT AUX-N CabControl
G2 digital joystick
Part no.: 11558097

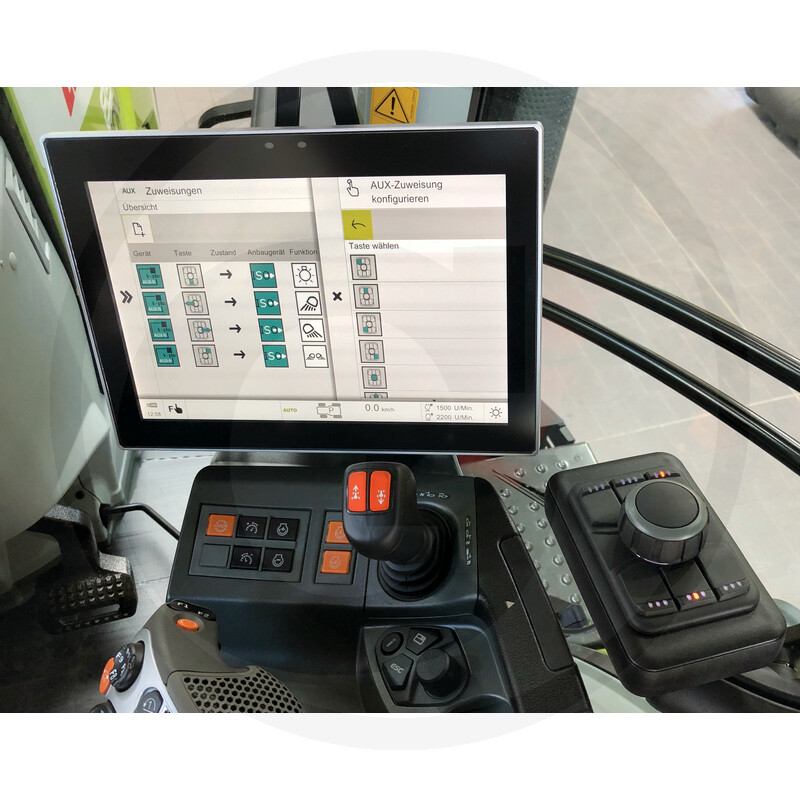

Anwendungsbeispiel
Further information
- Manufacturer:
- Wilhelm Fricke SE, Zum Kreuzkamp 7, 27404 Heeslingen, Deutschland, www.granit-parts.com, [email protected]
- To be found in category:
- ElectricsPrecision farmingISOBUSAUX-N gatewayb-Drive Cab Control G2 digital joystick
The b-ISOBUS AUX-N gateway offers quick access to the ISOBUS AUX-N functions provided by the job computer (on any controls).
The keys can be assigned directly on the UT/virtual terminal.
A broad range of joysticks and key controls allows the device to be tailored to your application.
Control units from other manufacturers can also be connected.
The ISOBUS connection is cabled in just a few seconds without tools using the ISOBUS InCab socket in the tractor.
Other connection options can also be selected on a customer-specific basis.
Technical data:
Operating temperature: -40 → +80°C
Protection class: IP67
Weight: 0.095 kg
Qualification: CE / E approval / AEF ISO11783
Dimensions: 104 x 29 x 72 mm (W x H x D)
Housing: plastic PA12, black
Bus interfaces: 2 CAN bus (high-speed) according to ISO 11898-2
Supply voltage: 8 → 32 V DC
Status LEDs: LED 1: communication status, LED 2: supply status
