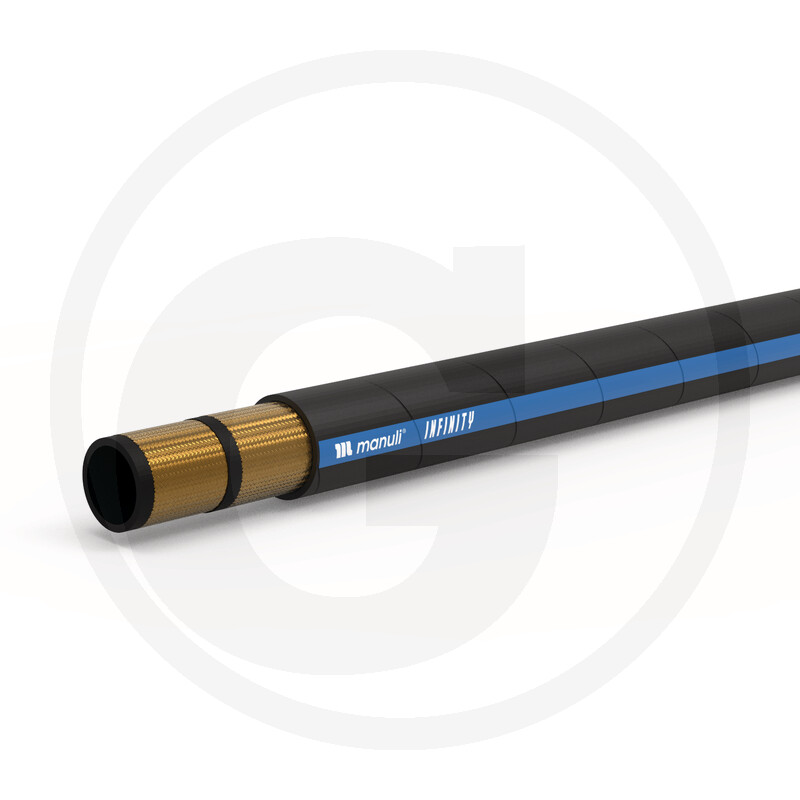

Manuli INFINITY DN 10
MANULI hydraulic hose
Part no.: 11400207
Further information
- Nominal width:
- DN 10 - 3/8"
- Outer Ø (mm):
- 16.8
- Operating pressure max. (bar):
- 400
- Burst pressure (bar):
- 1600
- Bending radius (mm):
- 65
- Weight (g/m):
- 440
- Press fitting (skive):
- 815M00120-06
- Description:
- 2 SC, EN857
- Version:
- 2 steel wire braids
- Type testing:
- MSHA; CU-TR; FRAS; B
- Press fitting (non-skive):
- 815M03400-06
- Hose type:
- INFINITY
- Weight:
- 198 g
Advantages
• The high-performance solution for the toughest OEM specifications
• Performance exceeds EN 857-2SC
• Longer service life and fatigue strength
• High temperature and environmental resistance
• Improved bending impulse strength with skive ferrule
• Broad chemical compatibility with hydraulic fluids
Inner core:
synthetic rubber
Inserts, reinforcement:
two high-tensile steel wire braids
Outer cover:
synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operating temperature range
Recommended fluids:
mineral oil-based hydraulic fluids
Temperature range:
-40°C to 121°C
Approvals:
MSHA; CU-TR; FRAS; B
• The high-performance solution for the toughest OEM specifications
• Performance exceeds EN 857-2SC
• Longer service life and fatigue strength
• High temperature and environmental resistance
• Improved bending impulse strength with skive ferrule
• Broad chemical compatibility with hydraulic fluids
Inner core:
synthetic rubber
Inserts, reinforcement:
two high-tensile steel wire braids
Outer cover:
synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operating temperature range
Recommended fluids:
mineral oil-based hydraulic fluids
Temperature range:
-40°C to 121°C
Approvals:
MSHA; CU-TR; FRAS; B
