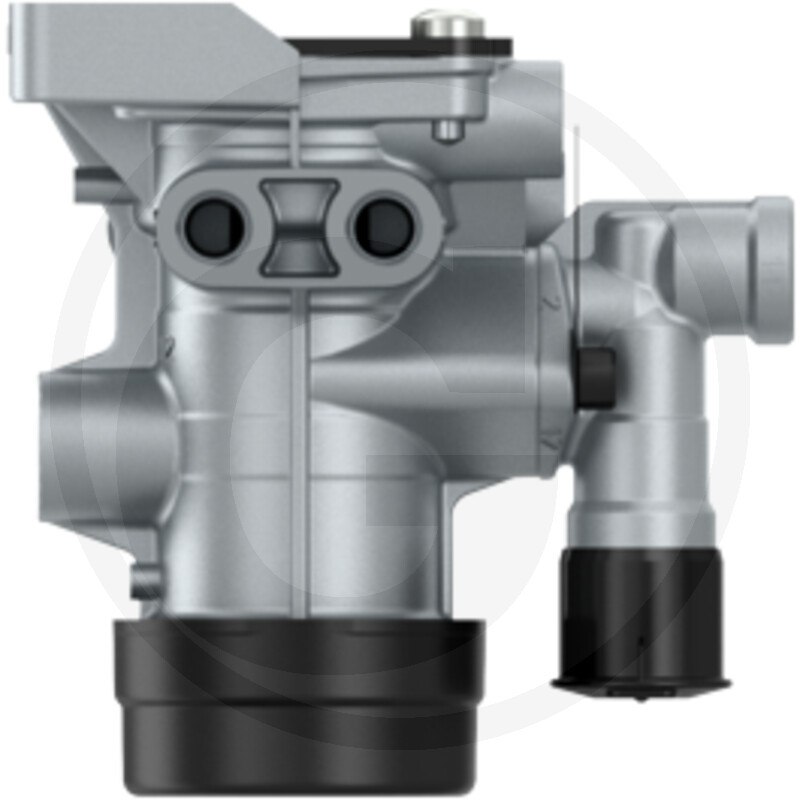

Wabco Trailer brake valve with release valve

Further information

Operating pressure max. (bar):

10

Description:

• New generation of trailer brake valves from ZF
• Product safety guarantee with full ECE-R 13/1 conformity (reset unit response time ≤0.44 s)
• Equipped with silencer, complies with UN/ECE regulation 51 and ADR-83/00 regulations on external noise

To fit:

• DAF • DOLL • EVOBUS • FAYMONVILLE • FELDBINDER • FRUEHAUF • GOLDHOFER • JOHN DEERE • KEMPF • KENWORTH • KRONE • KÄSSBOHRER • KÖGEL • LANGENDORF • LIEBHERR • MERITOR • NEOPLAN • ORTHAUS • PACCAR • PETERBILT • RENAULT-TRUCKS • SCANIA • SCHMITZ CARGOBULL • SCHWARZMÜLLER • TEREX • VAN HOOL • VOLVO-TRUCKS

Fixing:

2 holes Ø 11 mm
Spacing: 71 mm
Flange with 2 x female thread M8 x 1.25 spacing approx. 58 mm

Control:

4: M16 x 1.5 JED-152

Inlet connection:

1, 1-2: M22 x 1,5 JED-152

Outlet connection:

2: 2 x M16 x 1,5 JED-152, 1 x M16 x 1,5 JED-152 im Flansch

Adjustment range (bar):

0 - 0.7

Version:

• For dual-line air brake systems
• With adjustable lead
• Combination of 971 002 030 0 and release valve 963 001 013 0

Additional information:

PLEASE NOTE: If this valve is used as a replacement for an older series, adjustments to the vehicle will be necessary due to the new design.

Temperature range (°C):

-40°C to +65°C

Ventilation:

Silencer

Weight:

1,43 kg

EAN codes:

4057876222704
