Manuli TWINPOWER/5000 DN 10
Hydraulikschlauch MANULI
Part no.: 11393143
Further information
- Nominal width:
- DN 10 - 3/8"
- Outer Ø (mm):
- 17,6
- Operating pressure max. (bar):
- 350
- Burst pressure (bar):
- 1400
- Bending radius (mm):
- 65
- Weight (g/m):
- 830
- Description:
- 2 SC, EN857
- Version:
- 2 steel wire braids
- Type testing:
- CU-TR; MSHA
- Press fitting (non-skive):
- 815M03400-06
- Press fitting (skive):
- 815M00120-06
- Hose type:
- Twinpower 5000
- Weight:
- 775 g

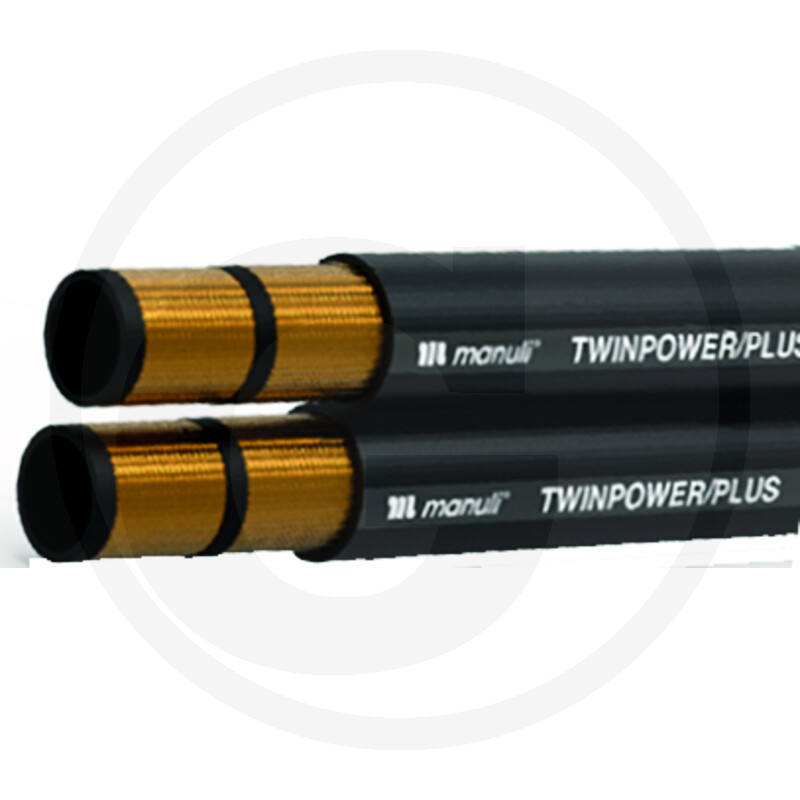

The Manuli TWINPOWER/5000 is a double rubber hydraulic hose that is typically used for aerial work platforms, forklifts and telescopic booms.
The compact design and smooth surface make it easy to install the hose assembly in tight spaces and eliminate the need for clamps to connect two hose assemblies. A double hose also prevents hose-to-hose abrasion during bending cycles.
Inserts, reinforcement: two high-tensile steel wire braids
Exterior: synthetic rubber with high abrasion, ozone, weather and heat resistance
Recommended fluids: mineral oil-based hydraulic fluids
Temperature range: -40°C to 100°C
Approvals: MSHA; CU-TR Performance exceeds EN 857-2SC
The compact design and smooth surface make it easy to install the hose assembly in tight spaces and eliminate the need for clamps to connect two hose assemblies. A double hose also prevents hose-to-hose abrasion during bending cycles.
Inserts, reinforcement: two high-tensile steel wire braids
Exterior: synthetic rubber with high abrasion, ozone, weather and heat resistance
Recommended fluids: mineral oil-based hydraulic fluids
Temperature range: -40°C to 100°C
Approvals: MSHA; CU-TR Performance exceeds EN 857-2SC
