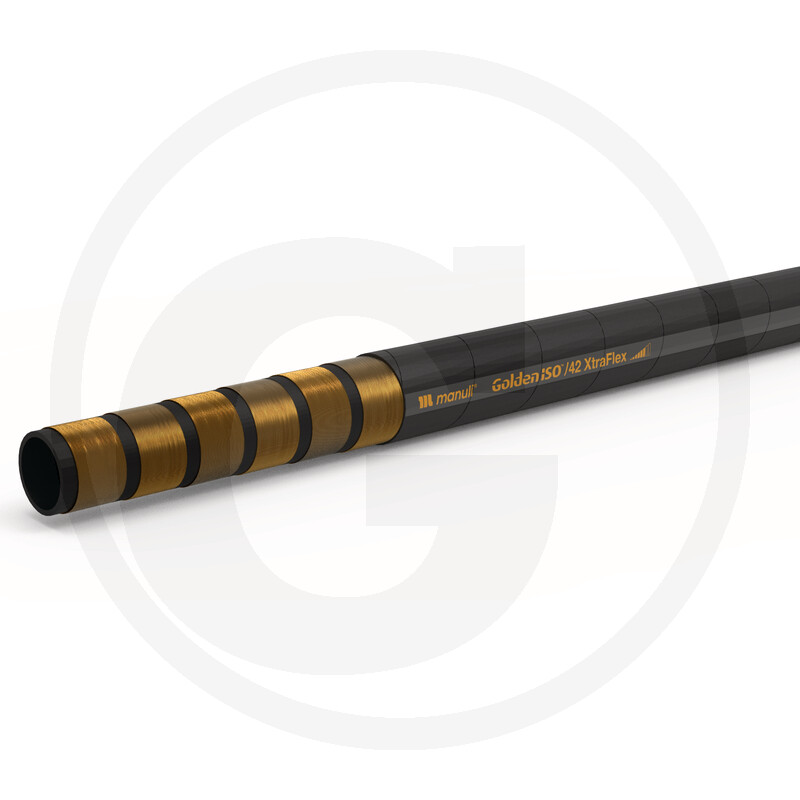

Manuli GOLDENISO/42 XTRAFLEX DN 6
MANULI hydraulic hose
Part no.: 11388978
Further information
- Nominal width:
- DN 6 - 1/4"
- Outer Ø (mm):
- 13.1
- Operating pressure max. (bar):
- 420
- Burst pressure (bar):
- 1680
- Bending radius (mm):
- 45
- Weight (g/m):
- 284
- Press fitting (skive):
- 815M00120-04
- Description:
- R15
- Version:
- 4 steel wire spiral inserts
- Type testing:
- CU-TR; MSHA; FRAS; B; ABS; BV; LR; RINA; DNV-GL(MED);DNV-GL; MA
- Hose type:
- GOLDENISO
- Weight:
- 284 g
Advantages:
• Bending radius exceeding standard requirements
• Good flexibility over the entire temperature range
• Easy assembly in any configuration
• High pulse strength according to ISO 18752, tested with 1 million pulse cycles
• Weight saving of 20% compared with conventional R15 hose Inner core:
synthetic rubber
Inserts, reinforcement:
DN6: two high-tensile steel wire braids
DN10 - DN32: four high-tensile steel spirals
DN38, DN50: six high-tensile steel spirals
Outer cover:
synthetic rubber with high abrasion, ozone, weather and heat resistance and an extended operating temperature range
Recommended fluids:
mineral oil-based hydraulic fluids
Temperature range:
-46°C to 121°C
Approvals:
CU-TR; MSHA; FRAS; B; ABS; BV; LR; RINA; DNV-GL(MED); DNV-GL; MA
