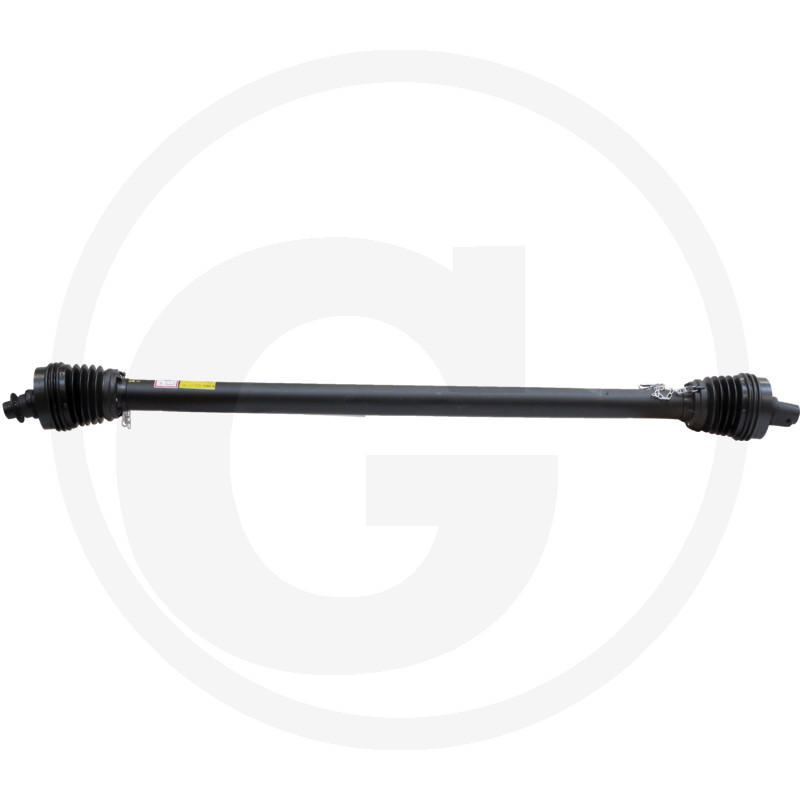

BONDIOLI & PAVESI PTO shaft

Further information

Size:

S8

Tractor version:

1 3/8” 6 splines

Implement version:

1 3/8" 6 splines

Lz (mm):

1960

Profile:

Italian system

Type:

SFT series 50° wide angle at both ends

Locking system:

Push-pull lock/tapered clamping bolt

Universal joint size A profile (mm):

30,2 x 106

Universal joint size B profile (mm):

30,2 x 106

bis PS / kW (540 rpm):

90/66

bis PS / kW (max. 1000 rpm):

136/100

Nm (540 rpm):

1171

Nm (1000 rpm):

956

Weight:

50,00 kg
