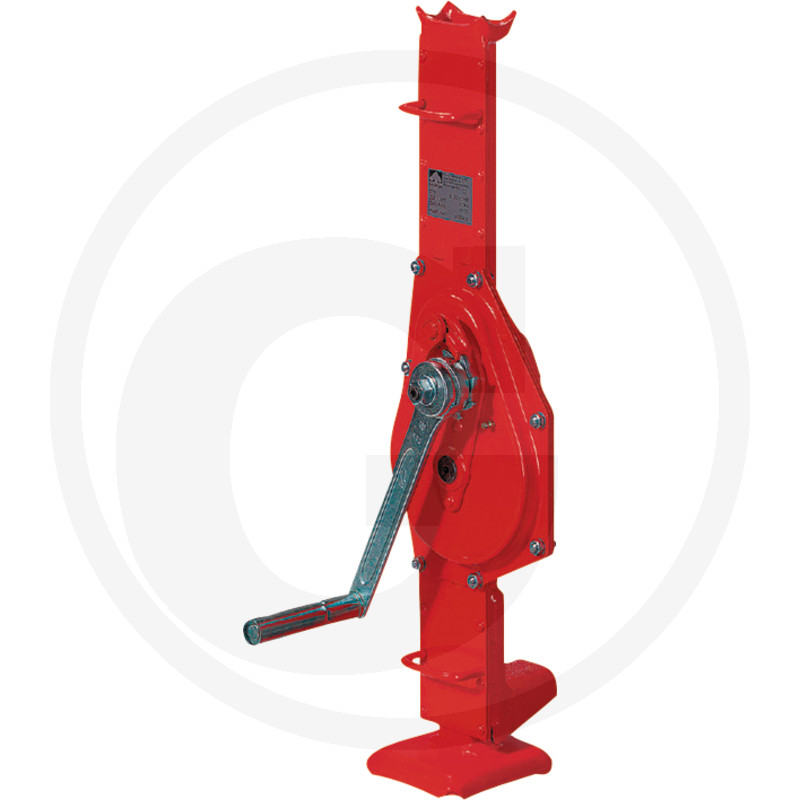

Haacon Steel winch, Pot winch,Type: 11.5 R

Further information

Permissible load (t):

5.0 (on pressure)

A (mm):

Bauhöhe (eingefahren) 722

E (mm):

77

H (mm):

300

S (mm):

70

Head:

F x G (mm) 110 x 60

Base plate:

M x N (mm) 150 x 170

D (mm):

406

Transmission:

22,5 :1

Lift / crank turn (mm):

4

Crank pressure (N):

270

Weight (kg):

27

Version:

Steel winch according to DIN and factory standard
with lifting housing, with fixed claw

long service life due to spur gear
made of high-quality, hardened and/or tempered steel hardened or tempered steel
easy, safe operation
load attachment on head or claw
safe standing due to large,
stable base plate
equipped with RAKU = ratchet crank
especially for confined spaces
proven safety system in accordance with
accident prevention regulations DGUV 54
powder coating in RAL 2004 (pure orange)

Weight:

29,00 kg
